Oasis 2700 Compact Patio Shades

Manual crank and gear operated or motorized exterior solar screen shades for smaller patio applications up to 12′ wide

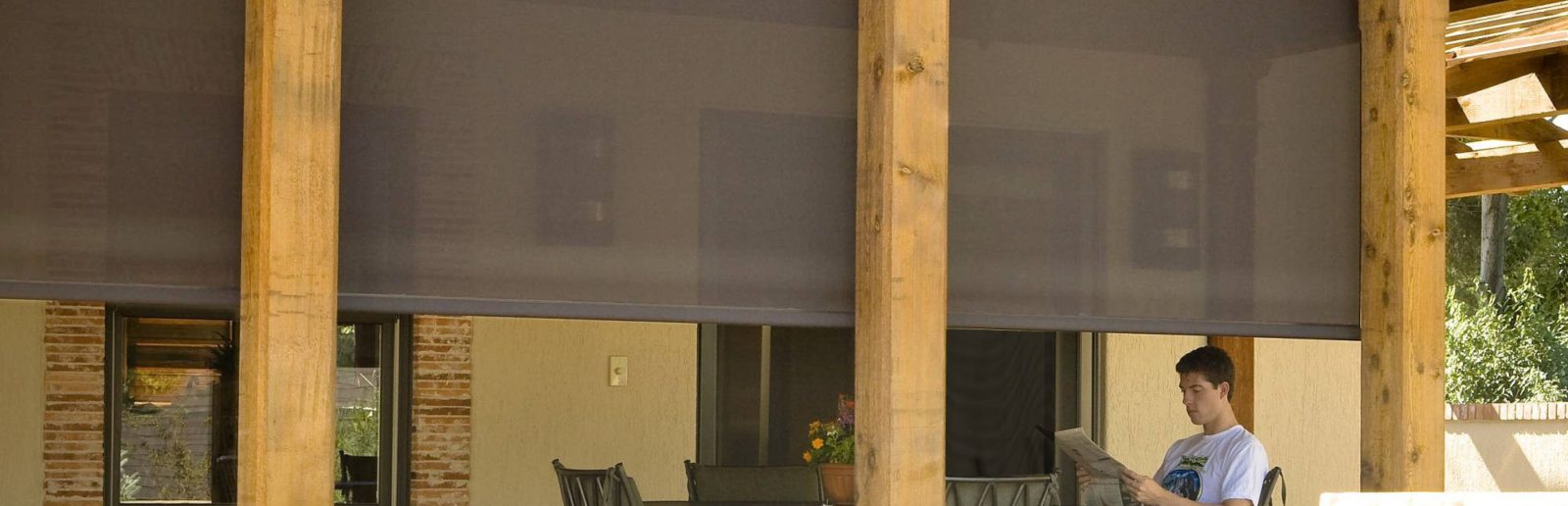

Oasis 2700 Compact Patio Sun Shades

Innovative Openings manufactures Oasis Patio Shades in Louisville, CO. With solar screen fabric, Oasis 2700 shades block the sun, not the view in smaller patio areas.

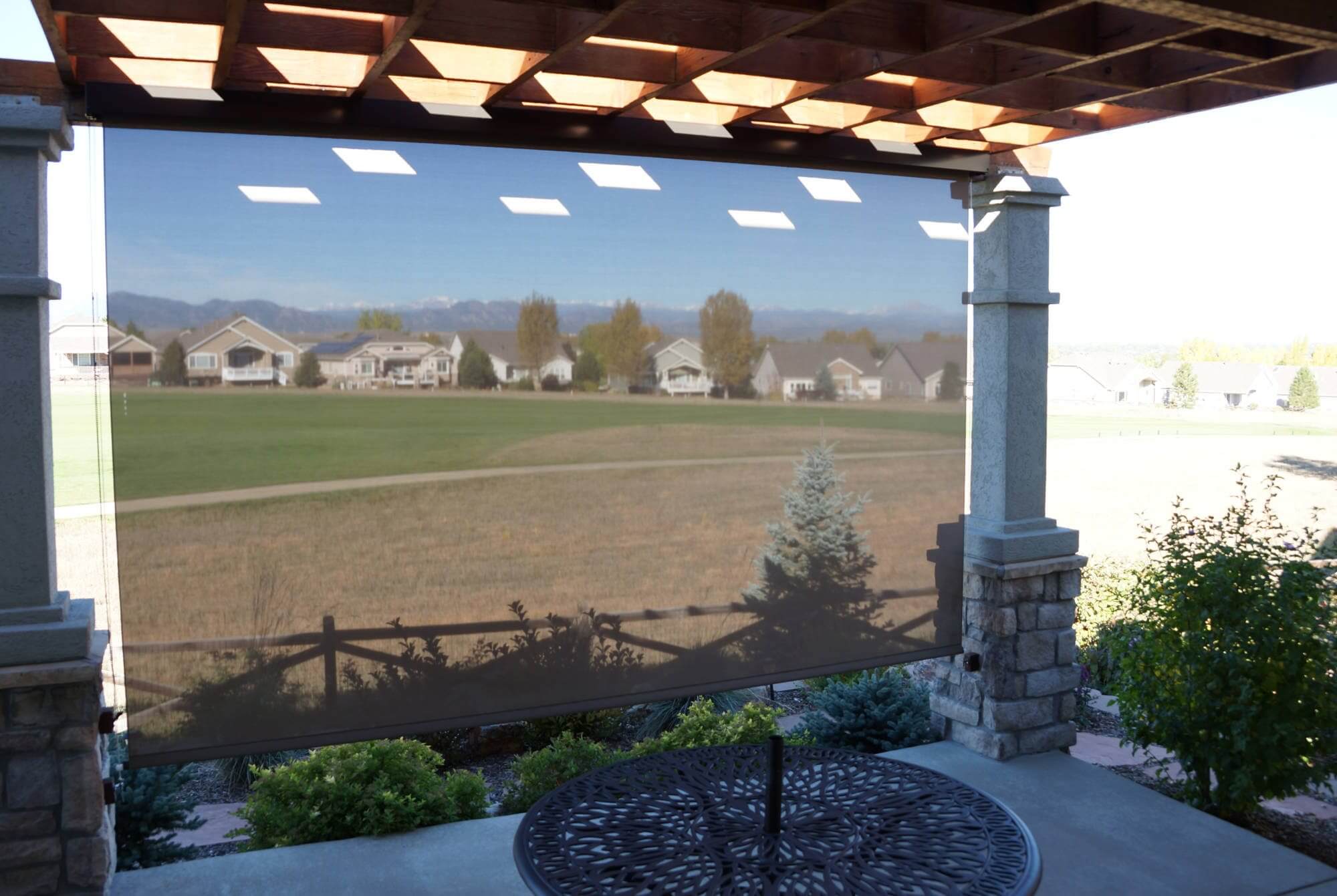

Oasis 2700 Patio pergola shades

  • Custom sizes to 12' wide
  • Motorized operation OR Manual crank and gear operation
  • 4" x 4 1/2" extruded aluminum head box
  • Cable guide OR side track system keeps shade in place
  • Welded fabric edges and hem pocket for durability
  • Heavy-duty aluminum hem bar


Insolroll Oasis 2700 Compact Patio Shade Head box roller housing

Extruded Aluminum Head Box to house the roller and fabric

Oasis 2700 boasts a heavy-duty 5-sided 4" x 4 1/2" extruded aluminum head box that both stores and protects your fabric, and conceals the roller. Heavy-duty mounting brackets are designed for lasting durability.

Available in white, bronze, and tan.

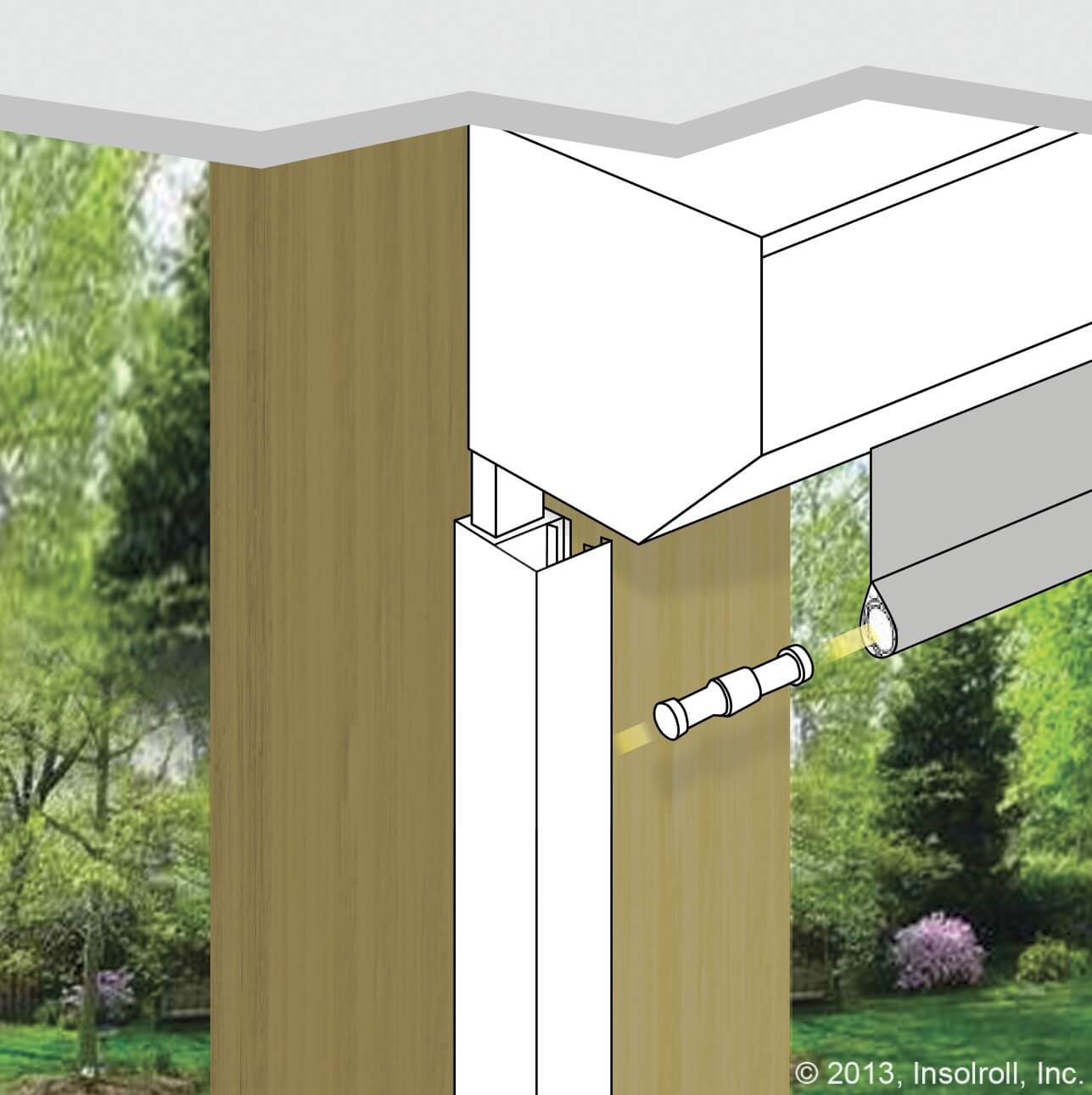

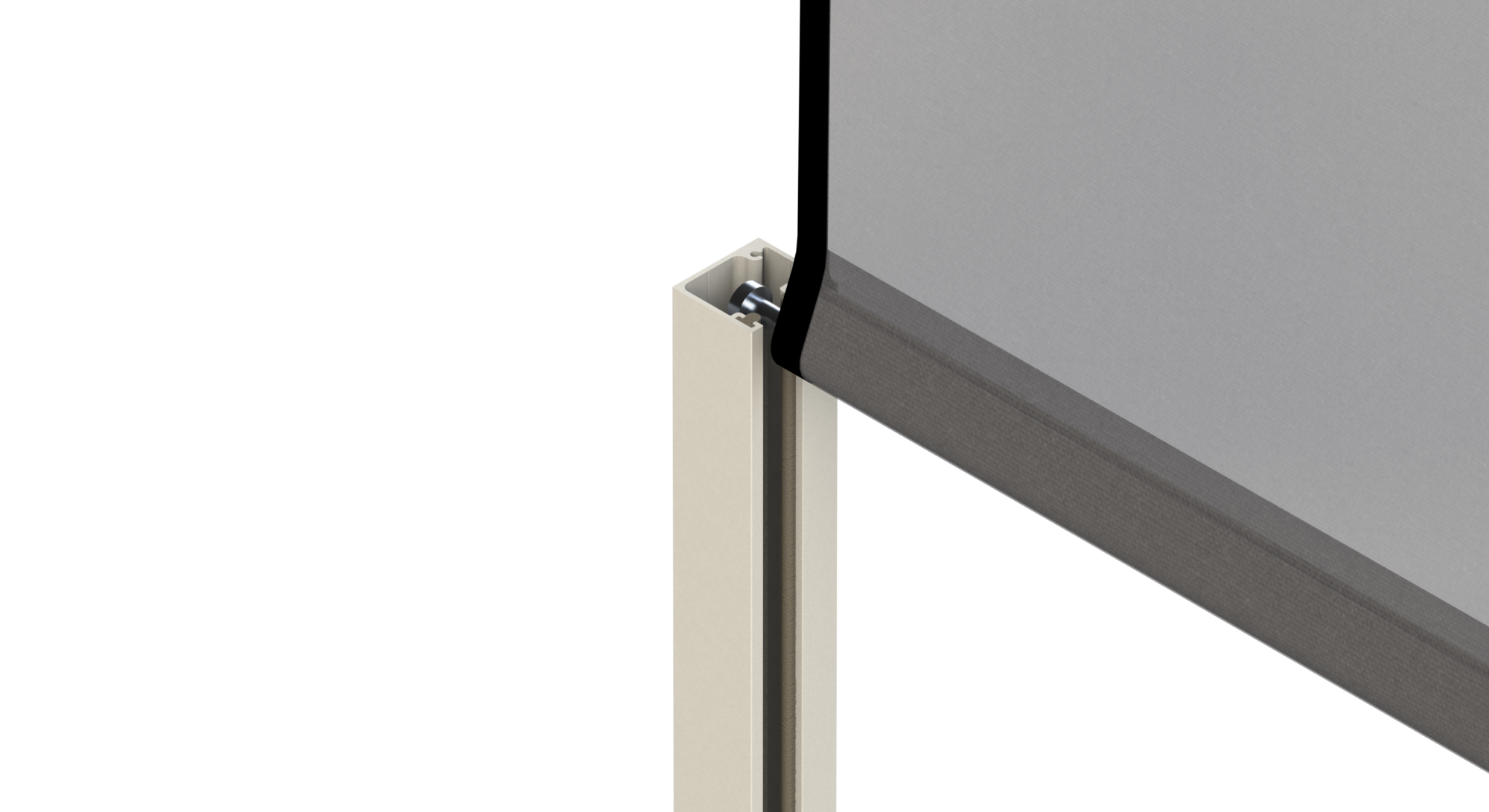

Oasis 2700 Track Guide System

The Oasis Track Guide system features an aluminum side track designed to allow smooth raising and lowering of the shade while keeping fabric in place with a specially designed hem bar. The hem bar is designed with a metal pin at each end which fits into the side track.



Insolroll Oasis® 2700 Compact Patio Shade Track guide fabric retention system



  • Face mount or side mount
  • Vinyl rail guard for smooth operation
  • Matching plug buttons for face mount applications; not required for side mount
  • White, Bronze, Tan, and Black

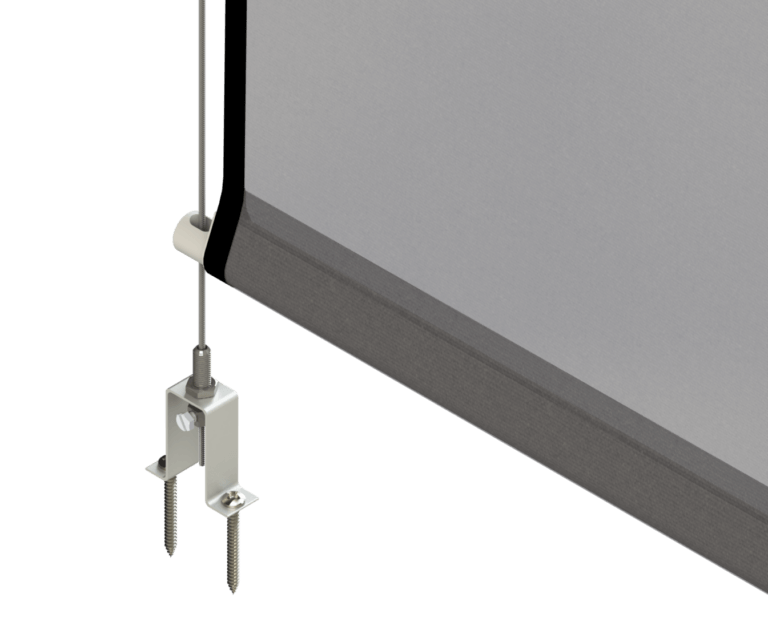

Insolroll Oasis® 2700 Compact Patio Shade Cable guide fabric retention system

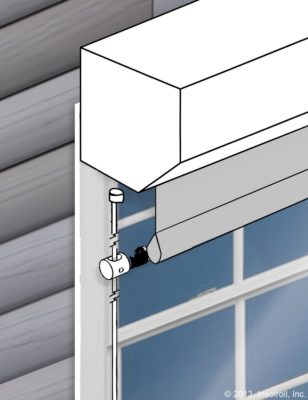

Oasis 2700 Cable Guide System

The cable guide system keeps shade fabric traveling straight as the shade moves up and down. It also provides greater stability of the shade in breezy conditions.

  • Exterior, nylon-coated stainless steel cable
  • Aluminum hem bar with guide insert inside teardrop-shaped welded hem pocket
  • Choice of wall mount or deck mount cable brackets

Not sure which Oasis Patio Shade model is right for you? Visit our Patio Screen Shade Buying Guide

Fabric options to meet your needs for sun control and privacy

  • High tech solar fabrics provide multiple levels of protection without blocking the view.
    • Solar Screen fabrics are technical fabrics, with very precisely controlled characteristics that provide sun control. The fabric openness and color determine each fabric's specific heat, glare and view-through characteristics, and all exterior solar fabrics are constructed of materials designed to hold up to the elements, so your shade stays beautiful for years to come.
    • Light colors can match the trim colors of your house, and provide better privacy
    • Dark colors provide the best glare control and view-through.
  • Translucent and blackout fabric options for privacy
    • Translucent fabrics allow filtered light with no view-through
    • Blackout fabrics block light with no view-through

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Fire-rated (FR) Aurora solar screen fabric consists of vinyl-coated polyester yarns woven in a 2 x 2 basketweave configuration. This value-priced fabric provides excellent view-through visibility. 27% Polyester, 73% PVC solar fabric in 3% and 5% openness choices. Click to view larger swatches.

  • Bone
    Bone
  • Charcoal
    Charcoal
  • Charcoal/Bronze
    Charcoal/Bronze
  • Grey/Bone
    Grey/Bone
  • White/Bone
    White/Bone
  • White/Grey
    White/Grey

Blackout Fabrics  |   Oasis® Patio Shades  |   For Exterior use

Made of solution-dyed acrylic fiber with a PVC back coating, Dusk blackout/privacy fabric is completely waterproof and combines the elegance of an acrylic canvas-look fabric with the waterproof performance of PVC on the out-facing surface. Offering complete privacy, dusk's PVC Back coating features Blackout finishing for thermal and visual comfort, as well as maximal protection from the sunlight.

  • Beige
    Beige
  • White
    White

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Vinyl-coated fiberglass solar screen fabric, Kona is woven in a basket weave configuration for excellent view-through. Available in 5% and 10% openness.

  • Bone
    Bone
  • Bone/Platinum
    Bone/Platinum
  • Bronze
    Bronze
  • Charcoal
    Charcoal
  • Charcoal/Grey
    Charcoal/Grey
  • White
    White

Solar Screen Fabric  |   Oasis® Patio Shades  |   For Exterior use

Vinyl-coated polyester solar screen fabric, Maui is woven in a basket weave configuration for excellent view-through. Available in 3% and 5% openness.

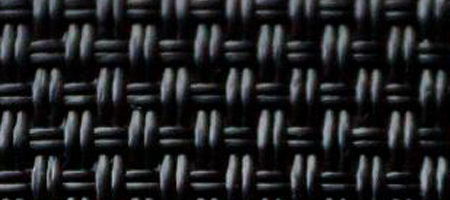

  • Black
    Black
  • Carbon
    Carbon

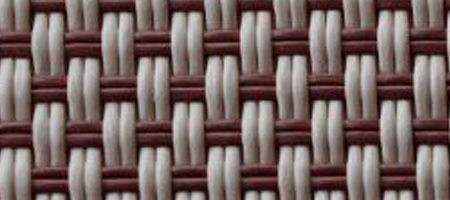

  • Chestnut
    Chestnut
  • Dark Bronze
    Dark Bronze
  • Mocha
    Mocha

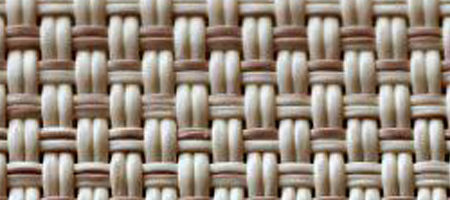

  • Stucco
    Stucco
  • White/Grey
    White/Grey

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Our Natural Weave Linen collection features FR solar screen fabrics woven with a slubbed texture and varied colors for a sophisticated, linen-like appearance. Made of polyester and vinyl, the fabric's 3% openness provides excellent outward visibility. Click to view larger swatches.

  • Burlap
    Burlap
  • Cinnamon
    Cinnamon
  • Clay
    Clay
  • Cream
    Cream
  • Fig
    Fig
  • Pearl
    Pearl
  • Taupe
    Taupe
  • Topaz
    Topaz

Solar Screen Fabrics  |   Oasis® Patio Shades  |   For Exterior use

Woven from thick, 165 Tex core yarns, Palisade solar fabric has added strength and durability for extra-wide patio shade applications. Weather-resistant, this premium fabric features basket weave pattern for optimal view-through. Available in 3% and 5% openness. Charcoal and Charcoal/Cocoa is also available in 10% openness.

  • Charcoal
    Charcoal
  • Charcoal/Cocoa
    Charcoal/Cocoa
  • Sable White
    Sable White
  • Sable Wood
    Sable Wood

Translucent Fabrics  |   Oasis® Patio Shades  |   For Exterior use

High tensile- and tear-strength acrylic translucent fabric for privacy, sun protection and resistance to rain. Click to view larger swatches.

  • Cadet Grey
    Cadet Grey
  • Charcoal Tweed
    Charcoal Tweed
  • Linen Tweed
    Linen Tweed

Insect Screen  |   Oasis® Patio Shades  |   For Exterior use

Heavy-duty vinyl-coated insect screen designed to keep out mosquitoes and other insects. Three times stronger than regular insect screens, it is pet-resistant, tear-resistant and puncture-resistant. 45% openness; click to view larger swatch.

  • Black
    Black

Insect Screen  |   Oasis® Patio Shades  |   For Exterior use

Vinyl-coated polyester insect screen with very small apertures to keep out very small insects such as No-See-Ums, or biting midges. 48% openness; click to view larger swatch.

  • Black
    Black

Oasis 2700 Patio Shades Operating Systems

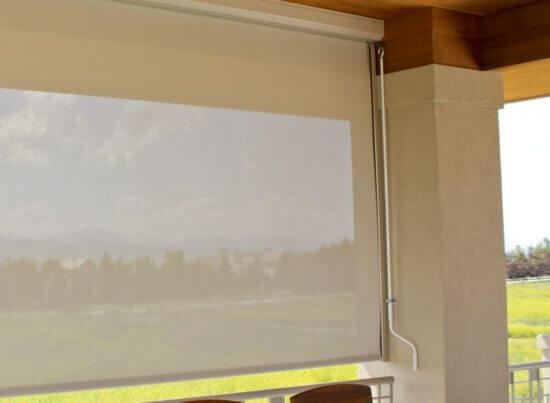

Exterior hand crank and gear operation

Hand crank and gear operation of a patio shade is made easy by dual grips at the end of the handle. When not in use, the handle is removable. Manual crank operated shades are available up to 12' wide and heights up to 10'.

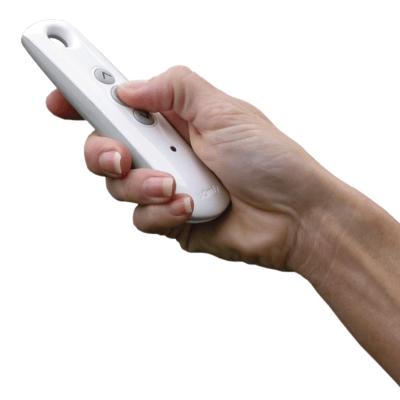

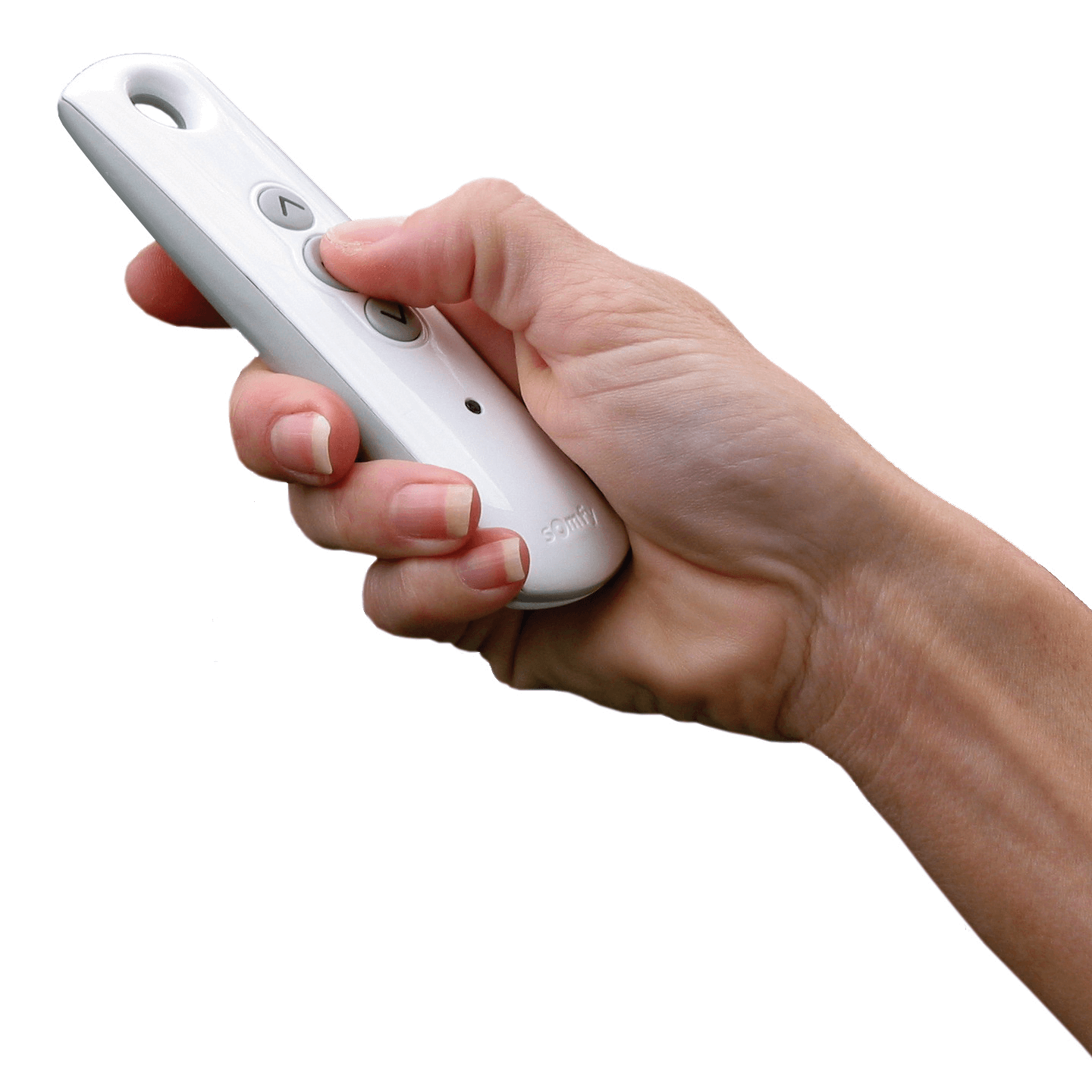

somfy single channel telis remote control for motorized shades

Motorized operation

Operate your patio sun shades with the touch of a button!

  • Insolroll Quiet Motor Technology (IQM).-Shades are available with 2 Somfy motor types: 110V AC quiet motors or 110V AC radio quiet motors. Radio motors are the most common choice choice and make retrofit applications easy as the switching is all wireless. Shades can be controlled by Somfy wireless wall switch, hand-held remote control, or even smart phones.
  • Oasis® Patio Shades Driven by Lutron™

Oasis Patio Shades Driven by LutronWith Lutron motor drive, shades are fully compatible with Lutron HomeWorks® QS and RadioRA2® lighting control systems, for state-of-the-art, personalized control.  Learn more about Oasis Shades Driven by Lutron

Oasis 2700 Detailing Options



Fully enclosed aluminum head box

Insolroll's head box protects fabric when retracted and provides a clean, finished appearance. Avilable in 4 colors.



Choice of side track or cable guide fabric retention systems

Keep fabric where it belongs and help prevent damage from fabric movement.



Manual hand crank or motorized operation

Simple manual operation is easy to use.

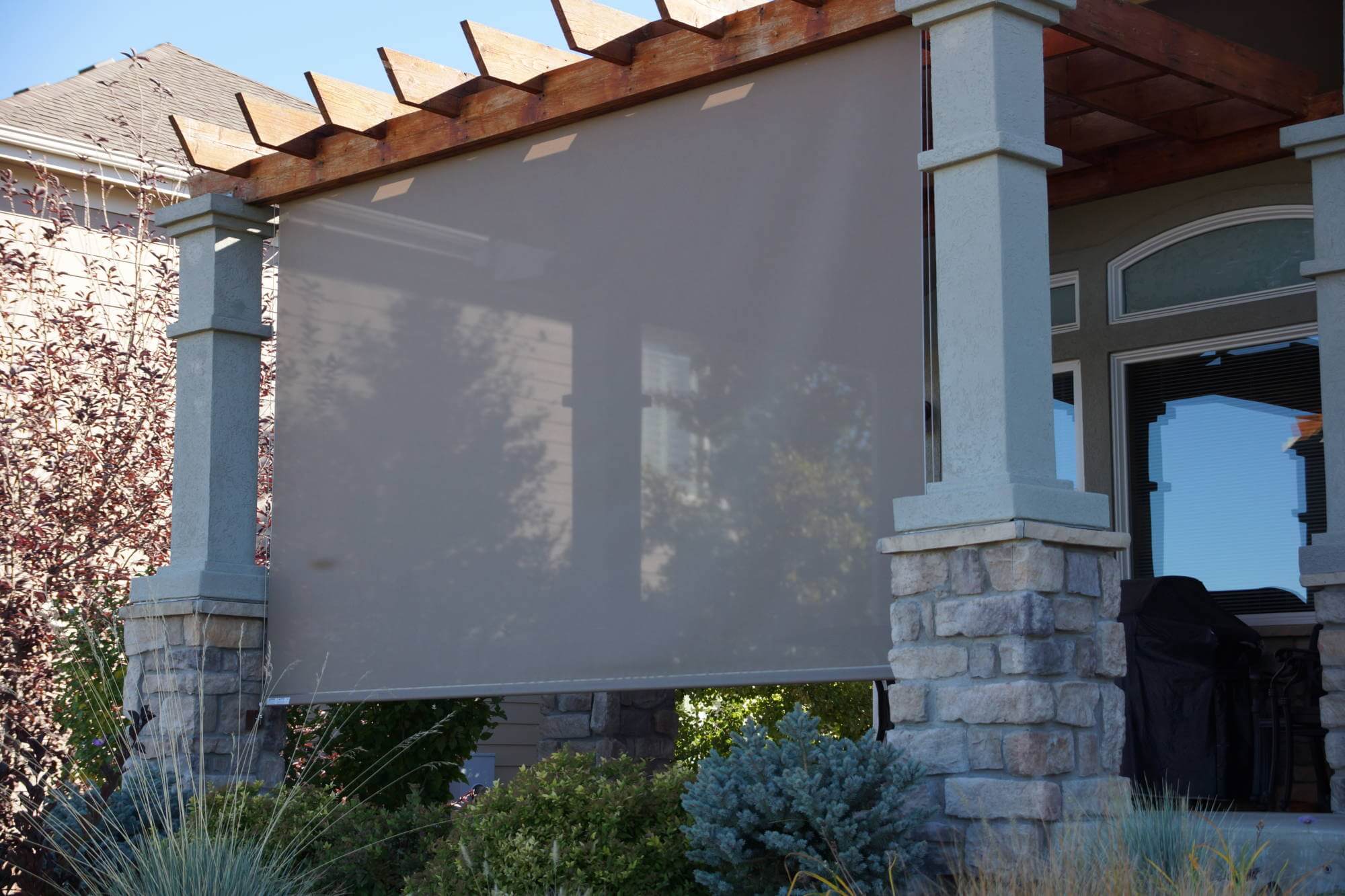

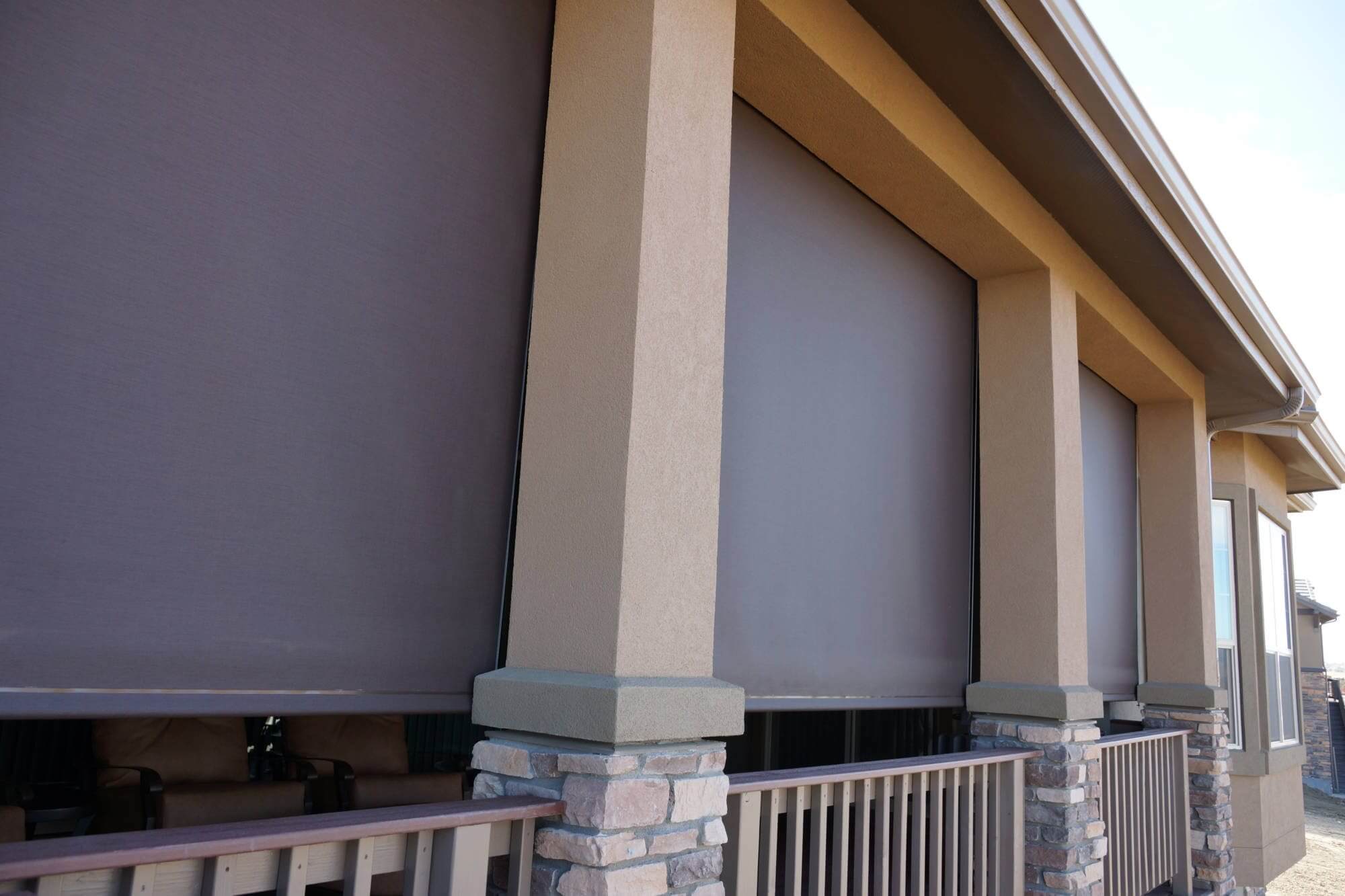

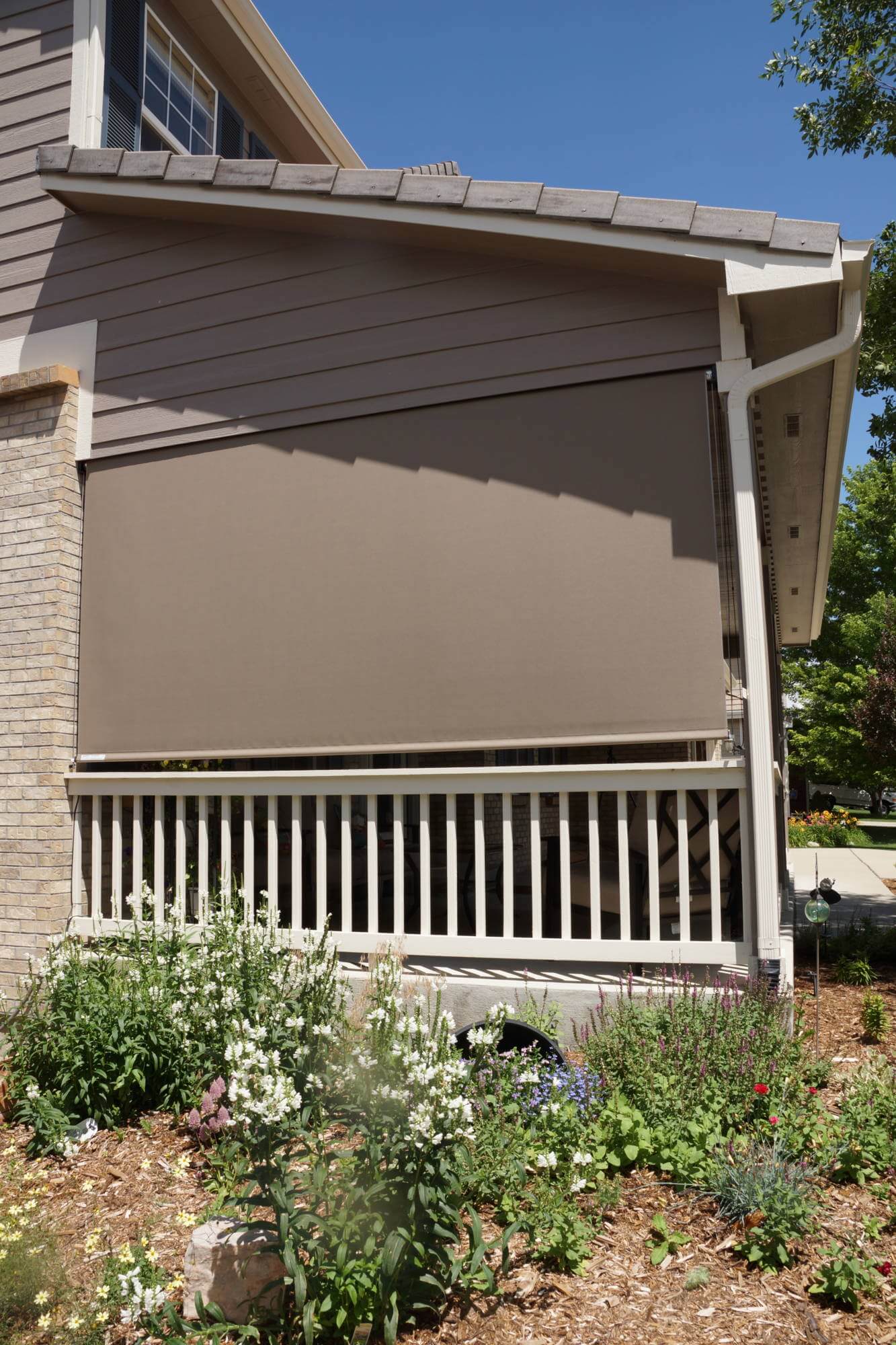

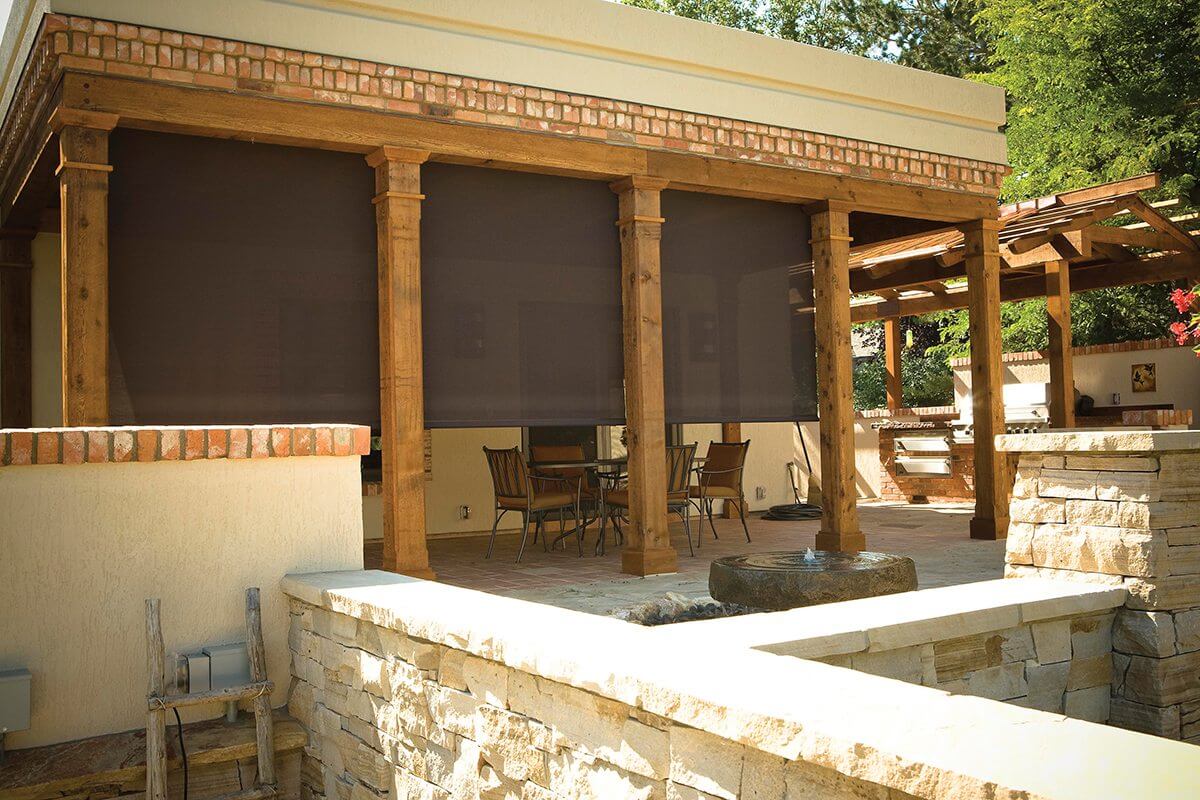

Oasis 2700 Patio Shades Image Gallery

Click to view.
