Oasis 2600 Manual Patio Sun Shades for Harsh Colorado Sun

Patio Sun Shades block the sun, not the view!

Innovative Openings offers a simple solution for west-facing decks and patios.

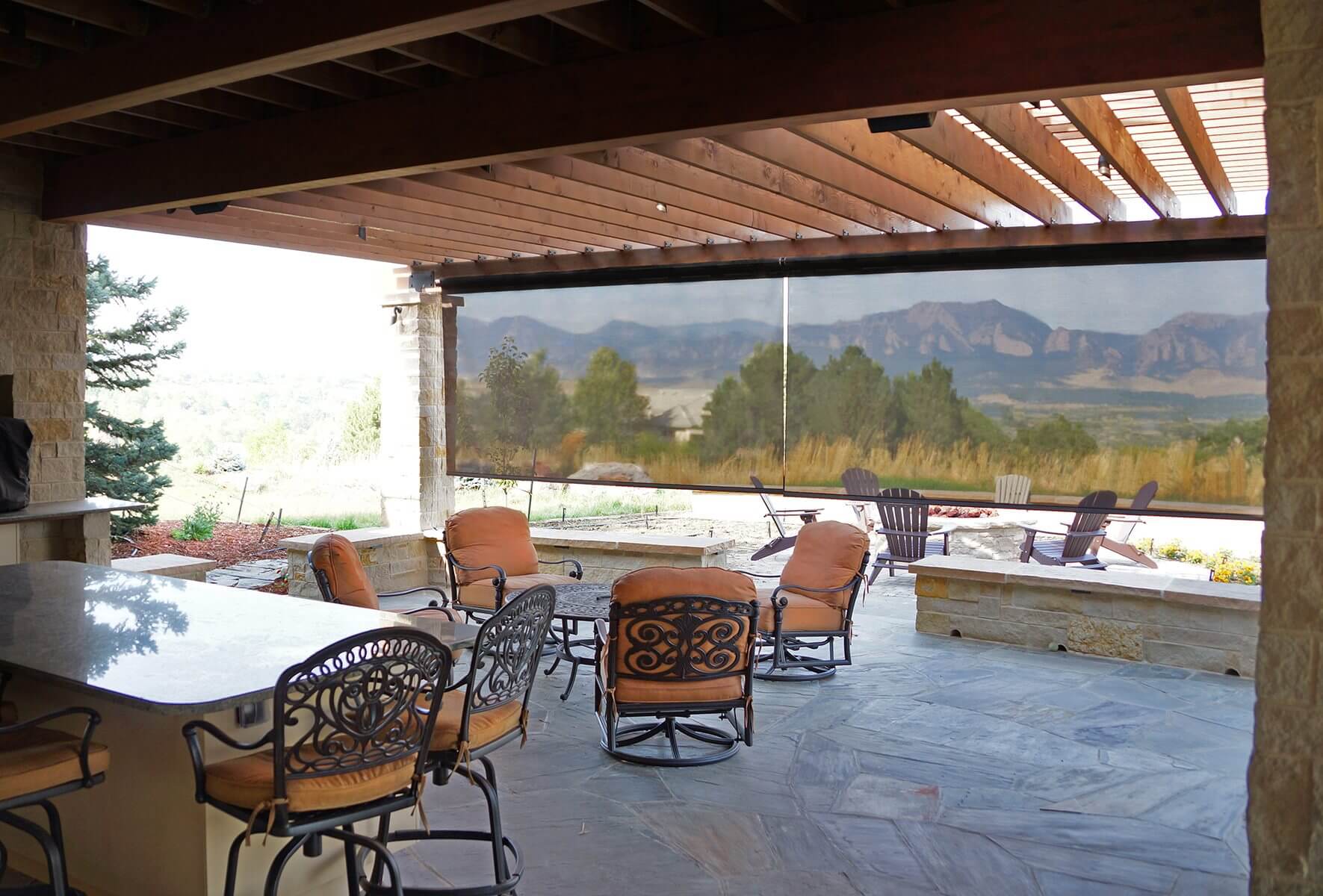

custom-sized patio sun shade

  • Blocks heat, glare and up to 99% of UV rays
  • Maintains view
  • Dark-colored solar screen patio shades offer the best view-through and glare control
  • Light-colored solar screen shades are often specified to match house trim colors and provide better privacy.
  • For good glare control with light colors, use a denser weave fabric



Custom-sized patio sun shades that beat the competition

Oasis Patio Shades are custom sized patio sun shade up to 10' wide with simple manual clutch operation. Every shade uses high quality fabric and components that beats every big box offering because of these stellar features:

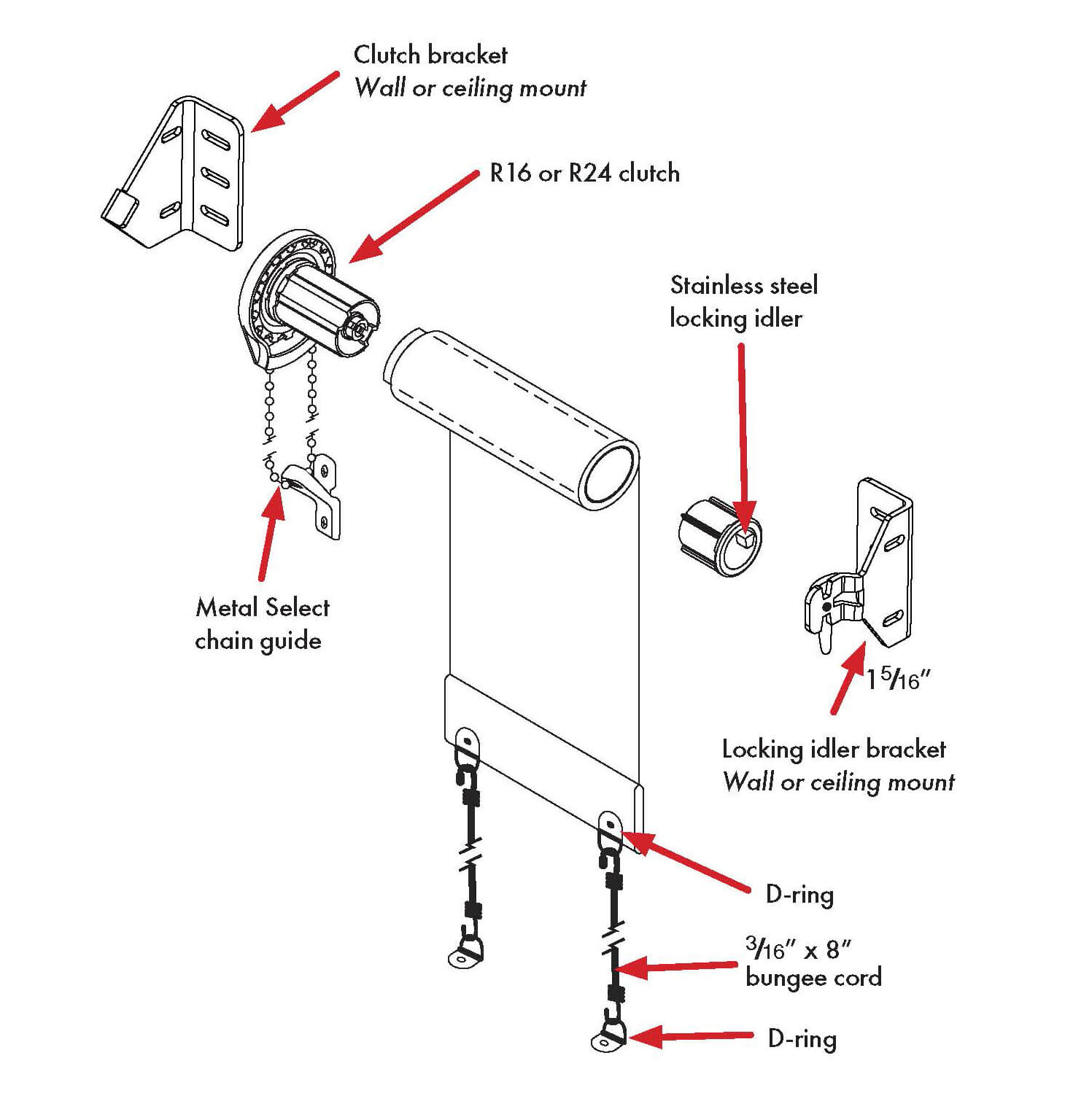

Insolroll Oasis 2600 manual operated solar shade with bungee tie downs

  • Large solar screen fabric selection (1 - 48% openness) to meet your particular shading and style requirements.
  • 3 clutch sizes for easy lifting of large shades (largest sizes have spring-assist operation)
  • Durable Metal Select child-safety chain guide- no other shade has it!
  • All fabric edges welded (heat sealed) to prevent fraying
  • Exterior grade stainless steel idler
  • Surface, side, or ceiling mount



Insolroll clutch idler side bracket
Idler Bracket

Insolroll clutch operator side bracket photo
Clutch Bracket

Oasis 2600 Patio Sun Shades feature a bungee cord hold-down system

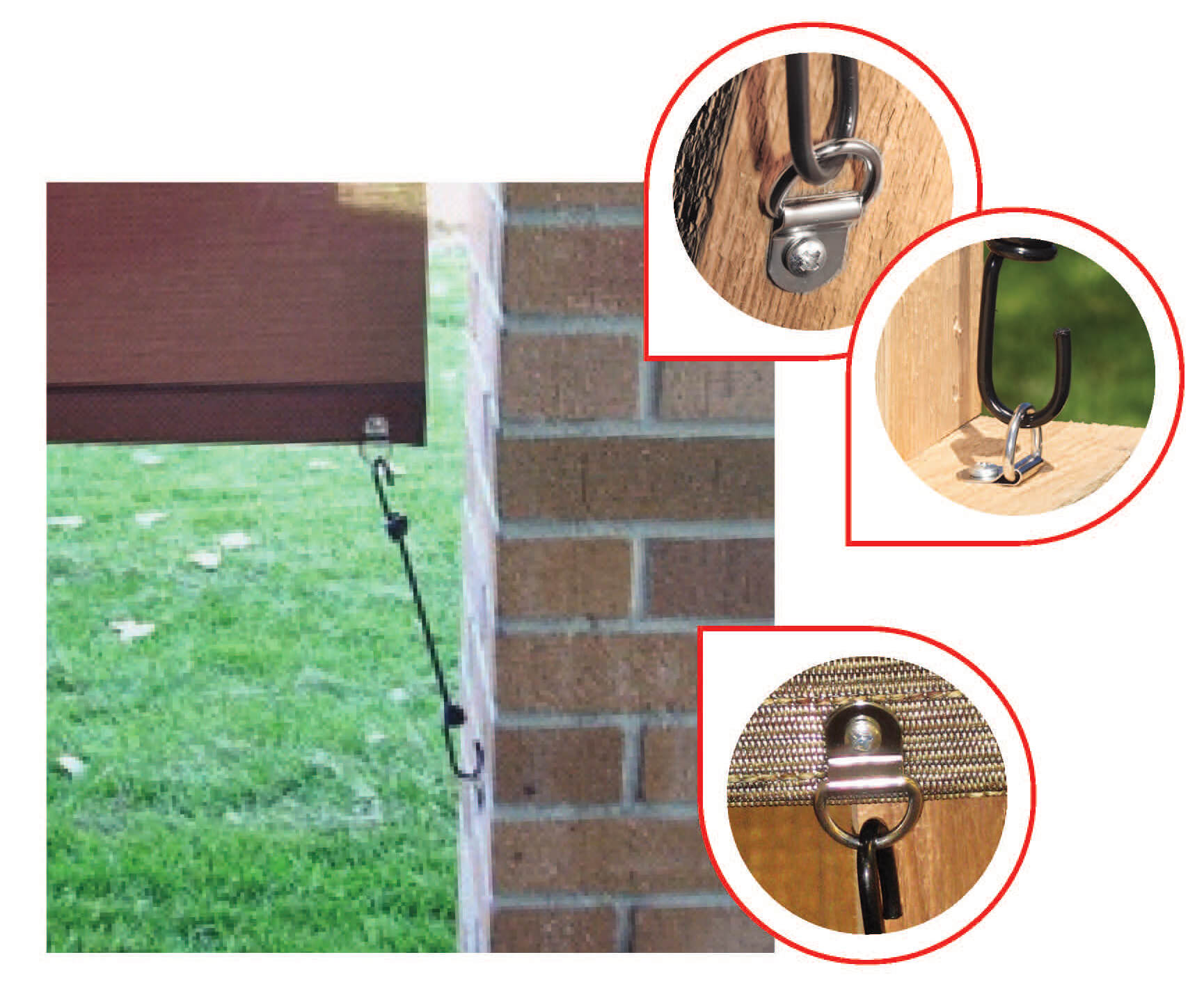

Insolroll Oasis 2600 bungee tie down photos

Innovative Openings understands that every patio or deck application is unique, and may require different mounting and guide systems.

Oasis 2600 clutch-operated patio shades

  • 6" Bungee cord hold-down system
  • Stainless steel D-rings can mount to deck, wall, railing, or post

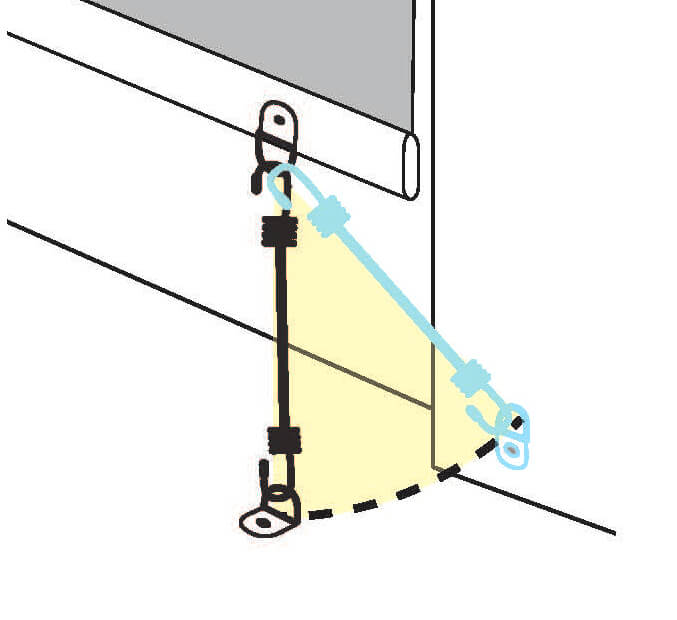

Insolroll Oasis 2600 bungee tie down mounting diagram

Measuring, Detailing, and Product Guide

Click to download

Oasis 2600 Product Guide

Oasis-2600-Measuring & Detailing Guide

Fabric options to meet your needs for sun control and privacy

  • High tech solar fabrics provide multiple levels of protection without blocking the view
    • Solar screen fabrics are technical fabrics, with very precisely controlled characteristics that provide sun control. The fabric openness and color determine each fabric's specific heat, glare and view-through characteristics, and all exterior solar fabrics are constructed of materials designed to hold up to the elements, so your shade stays beautiful for years to come.
    • Light colors can match the trim colors of your house, and provide better privacy
    • Dark colors provide the best glare control and view-through.
  • Translucent & Blackout fabrics for privacy
    • Translucent fabrics provide filtered light with no view-through
    • Blackout fabrics block light and view-through

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Fire-rated (FR) Aurora solar screen fabric consists of vinyl-coated polyester yarns woven in a 2 x 2 basketweave configuration. This value-priced fabric provides excellent view-through visibility. 27% Polyester, 73% PVC solar fabric in 3% and 5% openness choices. Click to view larger swatches.

  • Bone
    Bone
  • Charcoal
    Charcoal
  • Charcoal/Bronze
    Charcoal/Bronze
  • Grey/Bone
    Grey/Bone
  • White/Bone
    White/Bone
  • White/Grey
    White/Grey

Blackout Fabrics  |   Oasis® Patio Shades  |   For Exterior use

Made of solution-dyed acrylic fiber with a PVC back coating, Dusk blackout/privacy fabric is completely waterproof and combines the elegance of an acrylic canvas-look fabric with the waterproof performance of PVC on the out-facing surface. Offering complete privacy, dusk's PVC Back coating features Blackout finishing for thermal and visual comfort, as well as maximal protection from the sunlight.

  • Beige
    Beige
  • White
    White

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Vinyl-coated fiberglass solar screen fabric, Kona is woven in a basket weave configuration for excellent view-through. Available in 5% and 10% openness.

  • Bone
    Bone
  • Bone/Platinum
    Bone/Platinum
  • Bronze
    Bronze
  • Charcoal
    Charcoal
  • Charcoal/Grey
    Charcoal/Grey
  • White
    White

Solar Screen Fabric  |   Oasis® Patio Shades  |   For Exterior use

Vinyl-coated polyester solar screen fabric, Maui is woven in a basket weave configuration for excellent view-through. Available in 3% and 5% openness.

  • Black
    Black
  • Carbon
    Carbon
  • Chestnut
    Chestnut
  • Dark Bronze
    Dark Bronze
  • Mocha
    Mocha
  • Stucco
    Stucco
  • White/Grey
    White/Grey

Solar Screen Fabrics  |   Insolroll® Architectural Shades, Oasis® Patio Shades  |   For Interior & Exterior use

Our Natural Weave Linen collection features FR solar screen fabrics woven with a slubbed texture and varied colors for a sophisticated, linen-like appearance. Made of polyester and vinyl, the fabric's 3% openness provides excellent outward visibility. Click to view larger swatches.

  • Burlap
    Burlap
  • Cinnamon
    Cinnamon
  • Clay
    Clay
  • Cream
    Cream
  • Fig
    Fig
  • Pearl
    Pearl
  • Taupe
    Taupe
  • Topaz
    Topaz

Solar Screen Fabrics  |   Oasis® Patio Shades  |   For Exterior use

Woven from thick, 165 Tex core yarns, Palisade solar fabric has added strength and durability for extra-wide patio shade applications. Weather-resistant, this premium fabric features basket weave pattern for optimal view-through. Available in 3% and 5% openness. Charcoal and Charcoal/Cocoa is also available in 10% openness.

  • Charcoal
    Charcoal
  • Charcoal/Cocoa
    Charcoal/Cocoa
  • Sable White
    Sable White
  • Sable Wood
    Sable Wood

Translucent Fabrics  |   Oasis® Patio Shades  |   For Exterior use

High tensile- and tear-strength acrylic translucent fabric for privacy, sun protection and resistance to rain. Click to view larger swatches.

  • Cadet Grey
    Cadet Grey
  • Charcoal Tweed
    Charcoal Tweed
  • Linen Tweed
    Linen Tweed

Insect Screen  |   Oasis® Patio Shades  |   For Exterior use

Heavy-duty vinyl-coated insect screen designed to keep out mosquitoes and other insects. Three times stronger than regular insect screens, it is pet-resistant, tear-resistant and puncture-resistant. 45% openness; click to view larger swatch.

  • Black
    Black

Insect Screen  |   Oasis® Patio Shades  |   For Exterior use

Vinyl-coated polyester insect screen with very small apertures to keep out very small insects such as No-See-Ums, or biting midges. 48% openness; click to view larger swatch.

  • Black
    Black

Patio Shade Detailing Options & Child Safety

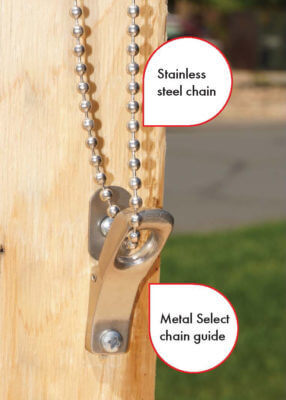

Insolroll metal select chain guide mounted photoOasis 2600
Insolroll is an industry leader in Child Safety, and offers the most attractive chain guide in the industry, Insolroll’s proprietary Metal Select locking chain guide. This Insolroll-exclusive chain guide provides both increased child safety and greater durability than industry-standard plastic guides.

We have developed products that exceed the latest standards established by the American National Standard for Safety of Corded Window Covering Products (ANSI/WCMA A100.1-2018), effective December 15, 2018.

Insolroll metal select chain guide color options

Available in 4 colors.

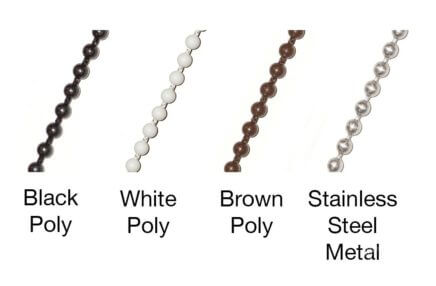

Insolroll chain color options

Bead chain available in 4 colors.

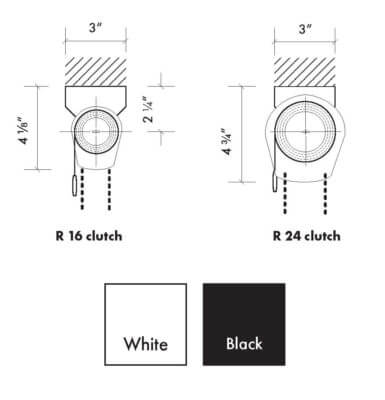

Insolroll r16 vs r24 clutch sideview diagram with color options

For easy lifting, patio shades are matched with clutch sizes according to clutch lifting capacity. Available in black and white.



Child Safety Corded Window Treatments Warning
Metal Select Chain Guide meets ANSI/WCMA A100.1-2018 Child Safety Standard. This standard requires that a warning label be permanently affixed to shade hem bar.

Measuring, Detailing, and Product Guide

Click to download

Oasis 2600 Product Guide

Oasis-2600-Measuring & Detailing Guide
